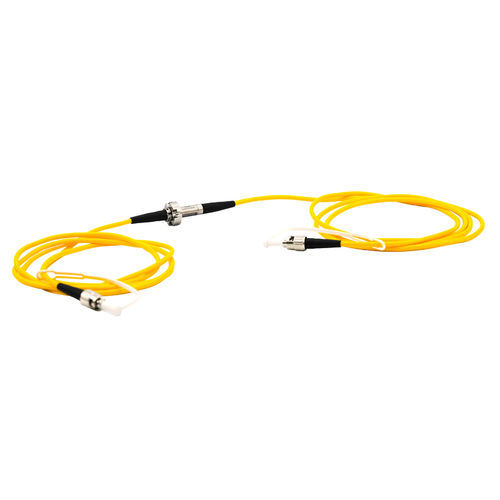

Fiber optic slip ring LPFO-01Asolid-shaftfor military applications
Add to favorites
Compare this product
Characteristics
- Type
- fiber optic
- Construction
- solid-shaft
- Applications
- for military applications
- Rotational speed
Max.: 2,000 rpm
(12,566 rad.min-1)Min.: 0 rpm
(0 rad.min-1)
Description
Part Number: LPFO-01A
Working Wavelength: 532nm
Insertion Loss:＜2db
Insertion Loss Fluctuation: ＜±0.25db
Return Loss: ＞40db; ＞55db
Fiber Wire Length: 1500mm (rotor), 85mm (stator)
Working Speed (max): 2000rpm; Housing: Stainless Steel
Connector Type: FC/PC (rotor), SC/PC (stator), Fiber Cover Type: 3 mm PVC
Working Temperature:-40℃~+85℃， IP68,
Vibration Resistance: MIL-STD-167-1A, Shock Resistance: MIL-STD-810G
Long Service Life:200 million~400 million turns； IP68
