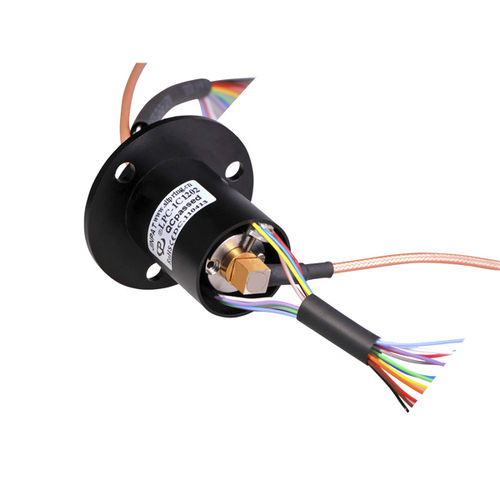

Capsule slip ring LPC-1C2402with gold contactsRF
Add to favorites
Compare this product
Characteristics
- Construction
- capsule
- Other characteristics
- with gold contacts, RF
- Voltage
240 V
- Primary current
2 A
- Rotational speed
50 rpm
(314 rad.min-1)- Number of channels
24 unit
Description
Part Number: LPC-1C2402
24 circuits
Current Rating: 24 circuits*2A; Voltage Rating:240VDC/AC;
Frequency Range: DC~3GHz/DC~1.5GHz; Insertion loss(dB): ＜1.5 dB/＜3dB;
Insulation: 100MΩ@500VDC; Electrical Noise: ＜15mΩ
Characteristic Impedance: 50Ω/70Ω;
Working Speed: 0~80rpm; Wire Size: AWG30#/250/250mm;
Working Temperature: -40℃~+80℃；
