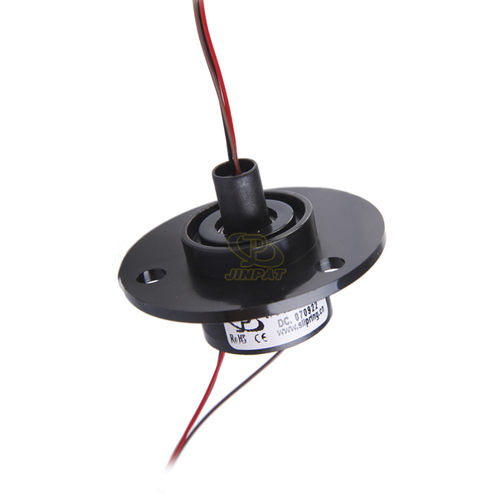

Capsule slip ring LPC-03P

for wind turbine

Part Number: LPC-03P 3 circuits Current Range: 3 circuits*10A; Voltage of 240 VAC/DC; Dielectric Strength ≥500 VAC@50 Hz; Insulation of 500 MΩ@500 VDC; Wire Size: AWG 14#UL®, Teflon® Electrical Noise:≤35 mΩ Operating Speed:0~300 rpm; Wire Length: stator (1200±5mm), rotor(1300±5mm); Contact: Precious metal; Housing: Engineering plastic; Working Temperature: -20°C~+60°C; Up to 60%RH; IP54;
