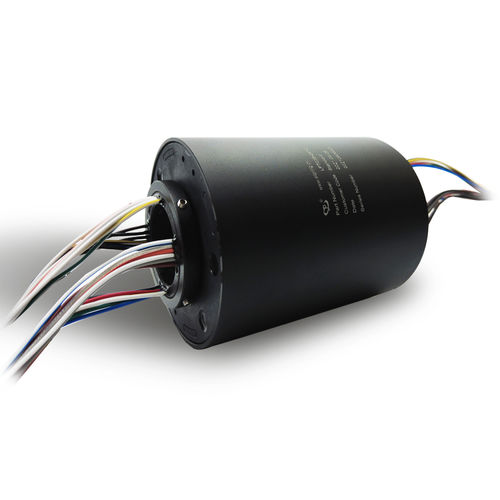

Pneumatic slip ring LPT038-0605/1216/2410gashollow-shaft
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic, gas
- Construction
- hollow-shaft
- Voltage
380 V
- Primary current
5 A
- Rotational speed
Max.: 300 rpm
(1,885 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Number of channels
Max.: 12 unit
Min.: 1 unit
Description
Part Number: LPT038-0605
6circuits
Current range:6circuits*5A; Voltage of 380VAC;
Insulation Resistance of 500MΩ@500VDC; Wire Size: AWG22#tin plated Teflon ®UL
Compression Strength ≥1000V@50Hz between circuits;
Operating Speed:0~300rpm; Wire Length: stator (300mm), rotor(300mm);
Precious metal contact; Inner Diameter of φ38.1mm
Working Temperature: -20°C~+60°C; Up to 60%RH; IP54
