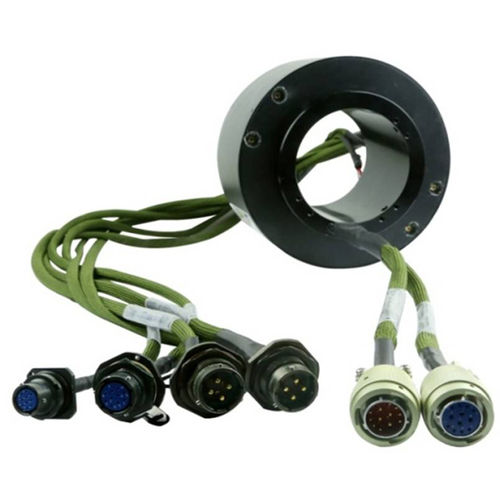

Through-bore slip ring LPT096-0430-1202A
rugged

through-bore slip ring
through-bore slip ring
Add to favorites
Compare this product

Go to the JINPAT Electronics Co., Ltd. website for more information

Characteristics

Construction
through-bore
Other characteristics
rugged
Voltage

Max.: 380 V

Min.: 240 V

Primary current

Max.: 15 A

Min.: 1 A

Rotational speed

Max.: 500 rpm
(3,142 rad.min-1)

Min.: 300 rpm
(1,885 rad.min-1)

Number of channels

Max.: 24 unit

Min.: 1 unit

Description

Part Number: LPT096-0430-1202A 16 circuits Current Range: 4circuits*30A, 12 circuits*2A; Voltage of 380VAC; Dielectric Strength: between circuits≥500VAC@50Hz; Insulation of 500MΩ@500VDC; Electrical Noise:≤70mΩ, ≤20mΩ (eight-core Ethernet Wire); Operating Speed:0~100rpm; Wire Size: AWG12#/22# tin plated Teflon® UL / eight-core Ethernet wire; Wire Length: (stator) 900mm, (rotor)300mm; Contact: Precious metal; Housing: Aluminum alloy; Inner Diameter:φ 96mm; Working Temperature: -40°C~+70°C; Up to 95%RH; IP54
