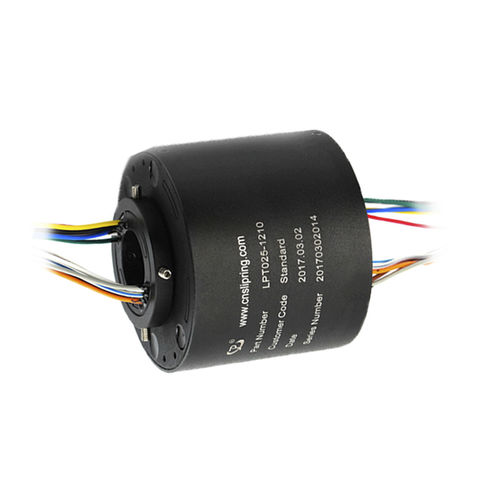

USB slip ring LPT025-1210

hollow-shaftcompact

Part Number: LPT025-1210 12 circuits Current Range: 12 circuits*10 A; Voltage: 380 VAC; Dielectric Strength: ≥1000V@50Hz between circuits; Insulation Resistance: 500MΩ@500VDC; Wire Size: AWG 17#Silver Plated Teflon UL; Operating Speed: 0~300rpm; Inner diameter of φ25.4 mm; Wire Length: rotor (300 mm), stator(300 mm); Contact: Precious metal; Working Temperature: -20°C~+60°C; Up to 60%RH; IP54;
