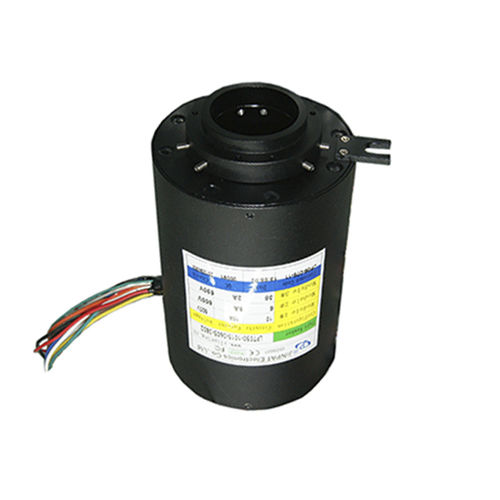

Hollow-shaft slip ring LPT050-1015-0605-3802

for cranescompact

Part Number：LPT050-1015-0605-3802 54 circuits Current Range: 10 circuits*15A, 6circuits*5A, 38circuits*2A; Voltage of 500VAC; Dielectric Strength ≥1000V@50Hz between circuits; Insulation: 1000MΩ@500VDC; Wire Size: AWG14/22# Tin plated Teflon UL, AWG26 Silver plated Teflon UL; Operating Speed:0~100rpm; Wire Length: stator (300mm), rotor(300mm); Weight: 8kg; Inner Diameter: φ50mm; Contact: Precious metal; Housing: Aluminum alloy; Working Temperature: -20°C~+60°C; Up to 60%RH; IP65;
