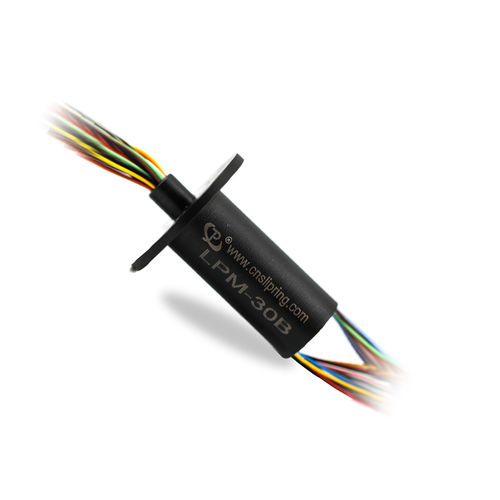

Capsule slip ring LPM-30Bfor CCTV applicationsgoldminiature
Add to favorites
Compare this product
Characteristics
- Construction
- capsule
- Applications
- for CCTV applications
- Material
- gold
- Other characteristics
- miniature, modular
- Voltage
240 V
- Primary current
1.5 A
- Rotational speed
300 rpm
(1,885 rad.min-1)- Number of channels
30 unit
Description
Part Number：LPM-30B
30circuits
Current Range: 30circuits*1.5A; Voltage of 240VAC;
Electrical Noise：≤35mΩ
Operating Speed:0~300rpm; Wire Size: AWG30#silver plated Teflon UL®;
Wire Length: stator (250mm), rotor(250mm);
Precious metal contact; Alluninum alloy housing;
Working Temperature: -20°C~+60°C; IP54
