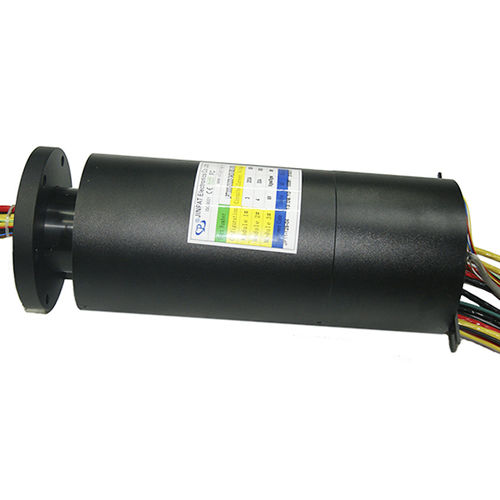

Ethernet slip ring LPT000-03200-0430-0802-09S

CAN busPROFIBUShollow-shaft

Part Number: LPT000-03200-0430-0802-09S 24 circuits Current Range: 3 circuits*200A, 4 circuits*30A, 9 circuits*communication signal, 8 circuits*weak electric signal; Voltage of 380 VAC; Dielectric Strength: between circuits≥500V@50Hz; Insulation Resistance: 500MΩ@500VDC; Electrical Noise: ≤70mΩ; Operating Speed: 0~250 rpm; Wire Size: AWG6#/12# tin plated Teflon® UL Cat.5e HSYV AWG22# silver plated Teflon® UL; Wire Length: stator (500mm), rotor(500mm); Contact: Precious metal; Housing: Aluminum alloy; Working Temperature: -20°C~+80°C; Up to 60%RH; IP51;
