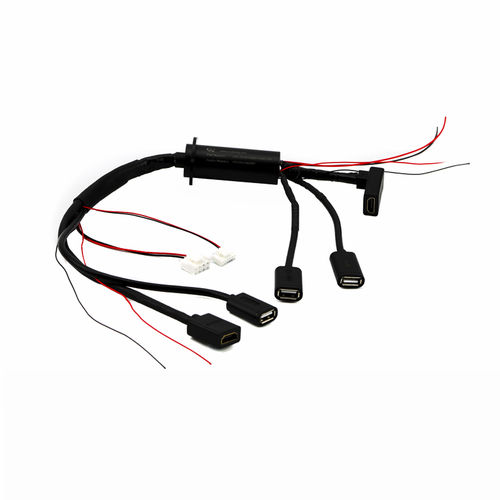

Electric slip ring LPC-U2-HD01-0402-0104HD-SDIUSBcapsule
Add to favorites
Compare this product
Characteristics
- Type
- electric, HD-SDI, USB
- Construction
- capsule
- Applications
- for cameras
- Other characteristics
- compact
- Primary current
Max.: 4 A
Min.: 1 A
- Rotational speed
Max.: 300 rpm
(1,885 rad.min-1)Min.: 1 rpm
(6 rad.min-1)
Description
Part Number: LPC-U2-HD01-0402-0104
7circuits
Current Range: 2circuits*1.5A, 1circuit*DC, 2circuits*4A, 1circuit*HDMI, 1circuit*USB2.0; Voltage of 48V;
Dynamic Resistance Fluctuation Values：≤15mΩ
Operating Speed:0~100rpm; Wire Size: AWG22#/AWG28#/AWG30/USB2.0/HDMI;
Wire Length: stator (160±5mm/125±5mm/75±5mm), rotor(320±5mm/290±5mm/215±5mm);
Precious metal contact; Engineering plastic housing;
Working Temperature: -20°C~+60°C; IP54
