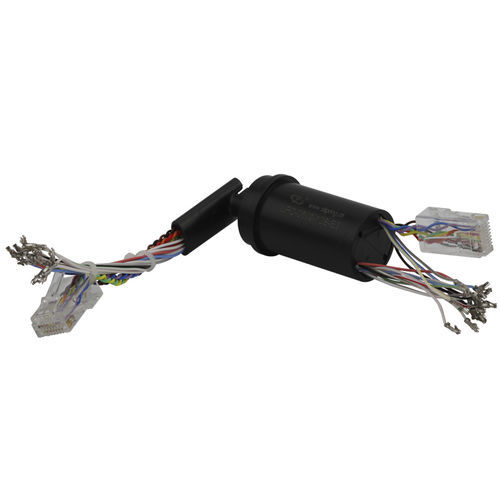

Ethernet slip ring LPC-0602-10S-E3
capsulefor CCTV applicationsaluminum

Ethernet slip ring - LPC-0602-10S-E3 - JINPAT Electronics Co., Ltd. - capsule / for CCTV applications / aluminum
Ethernet slip ring - LPC-0602-10S-E3 - JINPAT Electronics Co., Ltd. - capsule / for CCTV applications / aluminum
Add to favorites
Compare this product

Go to the JINPAT Electronics Co., Ltd. website for more information

Characteristics

Type
Ethernet
Construction
capsule
Applications
for CCTV applications
Material
aluminum
Other characteristics
with gold contacts
Voltage

240 V

Primary current

2 A

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 250 rpm
(1,571 rad.min-1)

Description

Part Number: LPC-0602-10S-E3 24circuits Current range: 8circuits*Gigabit Ethernet, 6circuits*2A, 10circuits*signal; Voltage of 240VAC; Dielectric Strength ≥500VAC@50Hz between circuits; Electrical Noise: ≤30mΩ Operating Speed:0~250rpm; Wire Size: AWG26#silver plated Teflon UL ®, AWG28#silver plated Teflon UL ; Wire Length: stator (40.6±5mm), rotor(114.3±5mm) Working Temperature: -40°C~+85°C; IP54
