Through-hole slip ring LPT038-2405-A
for roboticsfor wind turbinefor military applications

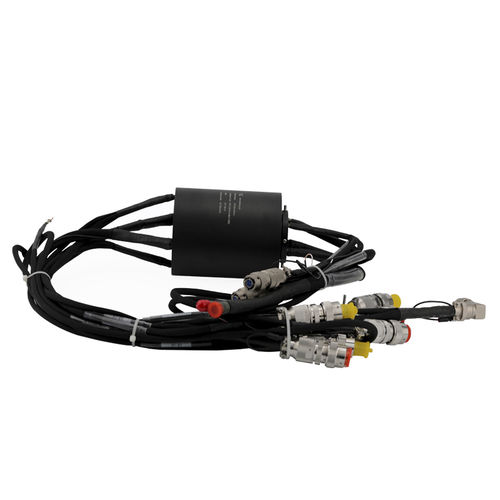

Through-hole slip ring - LPT038-2405-A - JINPAT Electronics Co., Ltd. - for robotics / for wind turbine / for military applications
Through-hole slip ring - LPT038-2405-A - JINPAT Electronics Co., Ltd. - for robotics / for wind turbine / for military applications
Add to favorites
Compare this product

Go to the JINPAT Electronics Co., Ltd. website for more information

Characteristics

Construction
through-hole
Applications
for robotics, for wind turbine, for military applications, for radar antennas
Material
aluminum
Other characteristics
with gold contacts
Voltage

Max.: 220 V

Min.: 24 V

Primary current

5 A

Rotational speed

Max.: 100 rpm
(628 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Number of channels

Max.: 7 unit

Min.: 1 unit

Description

Part Number: LPT038-2405-A 24circuits Current range: 24circuits*5A; Voltage of 24VAC/220VDC; Compression Strength: ≥1000V@50Hz between circuits(current), ≥300V@50Hz(signal) Insulation Resistance of 500MΩ@500VDC(current), ≥ 100MΩ@300VDC(signal); Wire Size: AWG22#tin plated Teflon UL® RS485 two-core wire, CANBus wire(2*0.75²) Operating Speed: 0~100rpm; Inner diameter of φ38.1mm Working Temperature: -40°C~+80°C; Up to 95%RH; IP65
