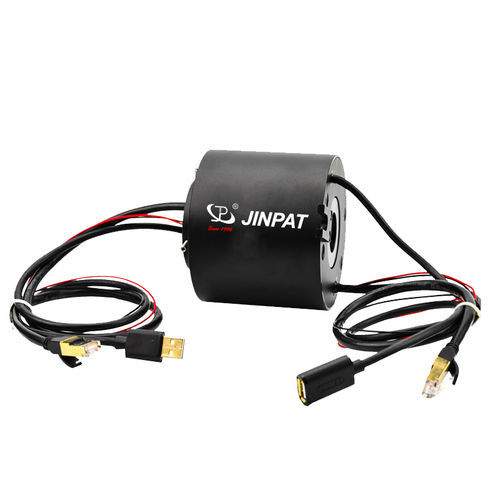

Ethernet slip ring LPT025-0202-E3-U2USBgigabit Ethernetthrough-bore
Add to favorites
Compare this product
Characteristics
- Type
- Ethernet, USB, gigabit Ethernet
- Construction
- through-bore
- Other characteristics
- with gold contacts
- Voltage
24 V
- Primary current
2 A
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 300 rpm
(1,885 rad.min-1)- Number of channels
Min.: 1 unit
Max.: 16 unit
Description
Part Number: LPT025-0202-E3-U2
16circuits
Current range:2circuits*2A, 8circuits*GigE, 1pair*USB2.0 signal;
Voltage of 24VAC;
Dielectric Strength: between circuits≥500V@50Hz(current),≥300V@50Hz(signal) ;
Insulation of 500MΩ@500VDC(current), 100MΩ@300VDC(signal);
Wire Size:AWG22# tin plated Teflon ®UL/USB2.0 wire/eight-core Ethernet wire
Operating Speed:0~300rpm; Wire Length: stator (1000mm), rotor(1000mm); Inner diameter of φ25.4mm
Working Temperature: -20°C~+60°C; Up to 60%RH; IP54;
