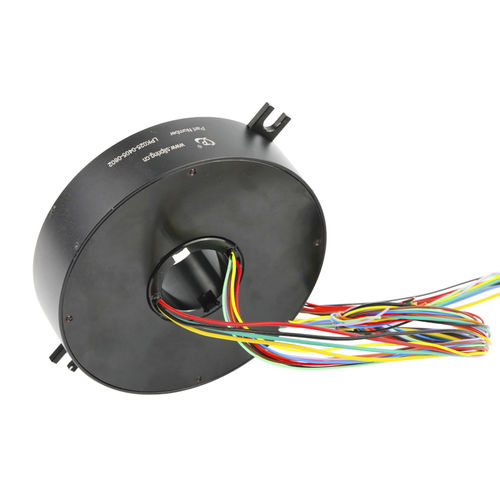

Flat slip ring LPK025-0405-0802roboticfor packagingfor rotary tables
Add to favorites
Compare this product
Characteristics
- Construction
- flat
- Applications
- robotic, for packaging, for rotary tables, for wrapping machines
- Other characteristics
- modular
- Voltage
220 V
- Primary current
Max.: 5 A
Min.: 2 A
- Rotational speed
Max.: 50 rpm
(314 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Number of channels
Max.: 12 unit
Min.: 1 unit
Description
Part Number: LPK025-0405-0802
12 circuits
Current Range: 4 circuits*5A, 8 circuits*2A; Voltage of 220 VDC/AC;
Dielectric Strength: between circuits: ≥100V@50Hz(current), ≥500V@50Hz(signal);
Insulation Resistance: 500MΩ@500VDC(current), 100MΩ@300VDC(signal);
Operating Speed:0~50rpm;
Wire Length: stator (300mm), rotor(300mm);
Contact: Precious metal;
Housing: Aluminum alloy;
Working Temperature: -20°C~+60°C; Up to 60%RH; IP54
