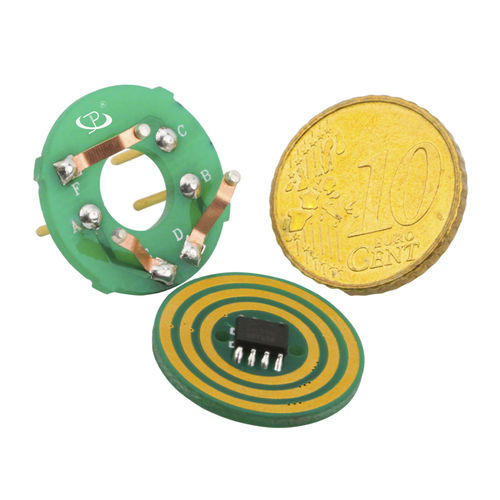

Pancake type slip ring LPKS000-0202-PINcustomcost-effective
Add to favorites
Compare this product
Characteristics
- Construction
- pancake type
- Other characteristics
- custom, cost-effective
- Voltage
5 V
- Primary current
2 A
- Rotational speed
Max.: 100 rpm
(628 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Number of channels
Max.: 3 unit
Min.: 1 unit
Description
Part Number: LPKS000-0202-1S-PIN
3 circuits
Current Range: 2 circuits*2A, 1 circuit*signal;
Voltage of 5VDC;
Dielectric Strength: between circuits: ≥100V@50Hz;
Insulation Resistance: 50MΩ@500VDC;
Electrical Noise:≤70mΩ;
Operating Speed:0~100rpm;
Contact: Precious metal;
Housing: FR-4;
Working Temperature: -20°C~+60°C; Up to 60%RH;
