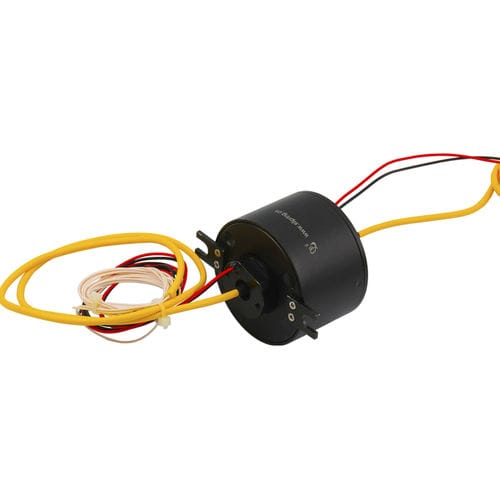

Electro-optical slip ring LPT000-0203-FO01fiber opticthrough-borealuminum
Add to favorites
Compare this product
Characteristics
- Type
- electro-optical, fiber optic
- Construction
- through-bore
- Material
- aluminum
- Other characteristics
- IP54
- Voltage
380 V
- Primary current
3 A
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 4,000 rpm
(25,133 rad.min-1)- Number of channels
Min.: 1 unit
Max.: 3 unit
Description
Part Number: LPT000-0203-FO01
Electric
Current Range: 1* Fiber+2*3A;
Voltage Rating: 380VAC/DC; Dielectric Strength: 1000VAC@50Hz;
Insulation Resistance: 500MΩ@500VDC; Insulation Resistance: 500MΩ@500VDC;
Electrical Noise：≤70mΩ((50rpm)；
Mechanical
Working Speed: 0-4000rpm; Contact: Precious Metal; Housing: Aluminum Alloy; Wire Size: AWG22# Teflon;
Working Temperature: -40℃-+80℃; IP54;
Life: ≥50 million turns（for references);
Installation Method: Rotor Side is fixed on the spindle with screws and plate;
Optical
Wavelength: 1310-1550nm; Fiber Type: SM/MM
Insertion Loss: <2 dB (Typical:0.5dB);
Insertion Loss Variation: +/-0.25dB（Typical：+/-0.15dB);
Return Loss: ＞40 dB; Connector Type: ST/FC/SC/LC;
