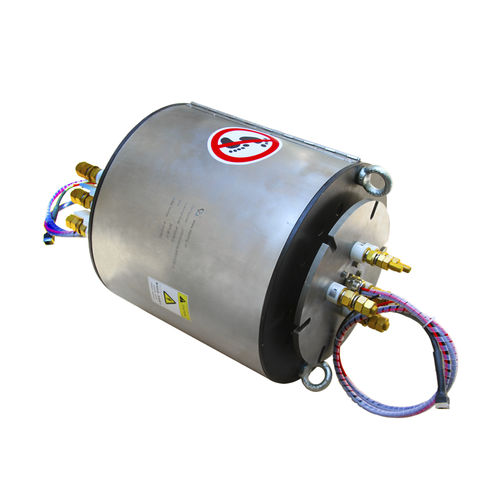

Ethernet slip ring LPA000-03300-02150-0230-E3
solid-shaftfor marine applicationsstainless steel

Ethernet slip ring - LPA000-03300-02150-0230-E3 - JINPAT Electronics Co., Ltd. - solid-shaft / for marine applications / stainless steel
Ethernet slip ring - LPA000-03300-02150-0230-E3 - JINPAT Electronics Co., Ltd. - solid-shaft / for marine applications / stainless steel
Add to favorites
Compare this product

Go to the JINPAT Electronics Co., Ltd. website for more information

Characteristics

Type
Ethernet
Construction
solid-shaft
Applications
for marine applications
Material
stainless steel
Other characteristics
high-current
Voltage

Max.: 380 V

Min.: 24 V

Primary current

Max.: 300 A

Min.: 1 A

Rotational speed

Max.: 10 rpm
(63 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Number of channels

Max.: 8 unit

Min.: 1 unit

Description

Part Number: LPA000-03300-02150-0230-E3 Circuits: 3 ckt* 300A, 2 ckt*150A, 2ckt*30A, 1 ckt * Gigabit Ethernet Voltage: 380V 24V AC/DC Dielectric Strength: 2500VAC@50Hz (Power); 300VAC@50Hz(Signal) Insulation Resistance: ≥500MΩ@1000VDC (Power), ≥100MΩ©@300VDC(Signal) Contact: Copper Graphite/ Precious metal Housing: Stainless steel 304 Working Speed: 0~10 rpm Working Temperature: -30~+80℃ Humidity: ≤85%RH Protection Grade: IP51

Catalogs

No catalogs are available for this product.

See all of JINPAT Electronics Co., Ltd.‘s catalogs
Go to the JINPAT Electronics Co., Ltd. website for more information

Other JINPAT Electronics Co., Ltd. products

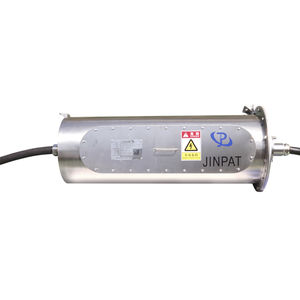

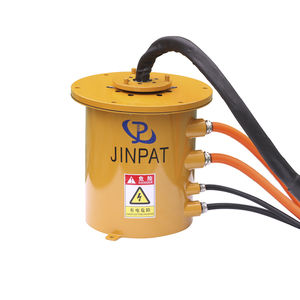

Large Current Slip Rings
