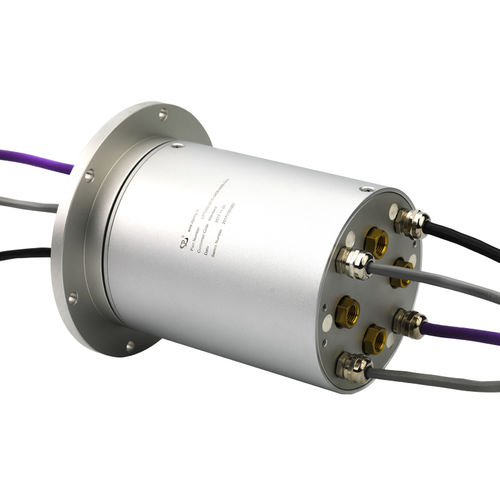

Electropneumatic slip ring LPT000-0415-0406-04S-04A

solid-shaftfor industrial applicationsanodized aluminum

Part Number: LPT000-0415-0406-04S-04A ▶ A Solid Shaft Slip Ring Integrated with Pneumatic Rotary Joint for Servo System Specification ● Electric Part Circuits: 4circuits * 2A, 4 circuits* 15A, 4 circuits * Signal Working Voltage:24VDC Dielectric Strength:≥1000VAC@50Hz（Current); ≥500VAC@50Hz（signal） Insulation:500MΩ@500VDC（Current); 300MΩ@300VDC（Signal） Electrical Noise: ≤70mΩ (50 rpm) Working Speed: 0~30/50rpm Contact: Precious Metal Housing: Aluminum Alloy Wire Size: (0.3mm²) Two core twisted-pair shielded wire, CC-Link (3x20AWG) SAVAFLEX-1000 4*2.5mm² Wire Length: Stator Wire:2000mm; Rotor Wire: 2000mm Temperature: -10°C~+70°C Humidity: ≤60%RH Protection Grade: IP54 ● Pneumatic Rotary Joint Channels: 4 Working Pressure: 0.1MPa Medium: Compressed Air Connection Caliber: Rc 1/4 Operating Torque: ≤0.5N.m Pipe Diameter: φ6mm JINPAT slip ring for servomechanism is used at the servo system to measure the actual position of the mechanical system compared to the control input. For the unit, internal wire diagram and special shielding in modular design make a complete solution for the interference of encoder signal. It can integrate the transmission of various signals. Integration of gas/liquid rotary joint is supported. Features ◆ No (encoder signal) interference ◆ Transmit varied signals: Encoder signal, control signal/ CANBus/ Profibus, and Profinet etc. ◆ Stable current & signal transmission ◆ Modular design in internal wire diagram & special shielding ◆ Be able to integrate with gas/liquid rotary joint ◆ Isolation between rings: ≥ 45dB Advantages ◆ Custom solution ◆ Long service life Application Military Equipment Test Facility Automatic Control System
