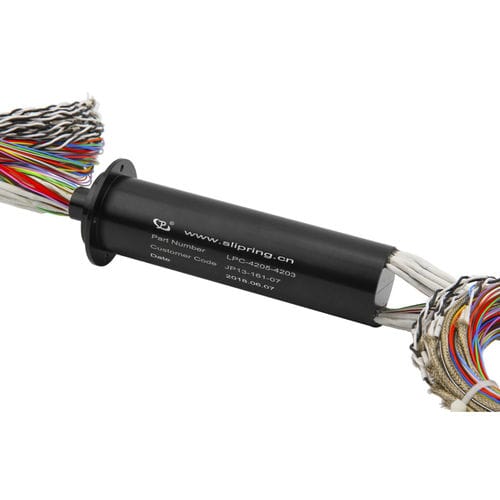

Capsule slip ring LPC-4205-4203for rotary tablesanodized aluminummulti-channel
Add to favorites
Compare this product
Characteristics
- Construction
- capsule
- Applications
- for rotary tables
- Material
- anodized aluminum
- Other characteristics
- multi-channel
- Voltage
Max.: 48 V
Min.: 0 V
- Primary current
Max.: 5 A
Min.: 1 A
- Rotational speed
Max.: 300 rpm
(1,885 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Number of channels
Max.: 84 unit
Min.: 1 unit
Description
Part Number: LPC-4205-4203
82 circuits Electrical Slip Ring
Circuits: 42 ckt*5A, 42 ckt* 3A; Voltage: 48V DC/AC;
Dielectric Strength: 500VAC@50Hz; Insulation: 100MΩ@500VDC;
Electrical Noise: ≤35mΩ;
Working Speed: 0~300 rpm; Wire Size: AWG26# Teflon, AFSP-250-2*0.35;
Wire Length: 600±5mm(stator),600±5mm(rotor);
Contact: Precious Metal; Housing: Aluminum Alloy
Working Temperature: 0~+40℃; Humidity: ≤60%RH; Protection Level: IP54
