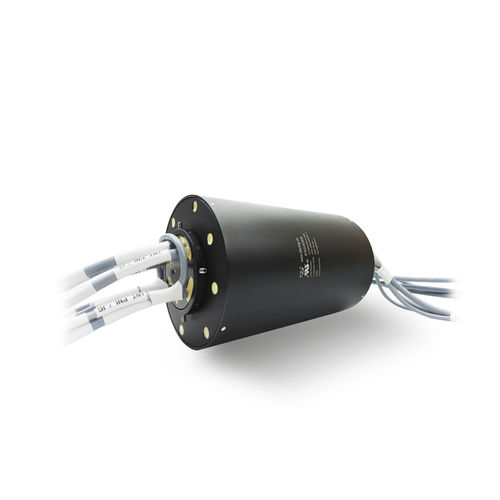

Through-bore slip ring LPT040-0610-24S

Through-Hole Slip Ring Transmitting 24 Circuits Signals The LPT040-0610-24S is an economical through-hole slip ring for a variety of signals and current mixed transmission. New innovative contact materials ensure long service life and extremely low-maintenance operation. Besides, the surfaces have been specially lubricated, thus allowing less friction and easy cleaning. It can be applied to various fields such as medical and lithium battery equipment. Features Circuits: 6 circuits@8A; 24 circuits@signals Voltage Rating: 800VDC/150VDC/24V/5VDC Dielectric Strength: Beyond 2500VAC@50Hz (8000V) Beyond 1500VAC@50Hz (150V) Beyond 300VAC@50Hz (signal) Insulation: beyond 500mΩ@800VDC Electrical noise: within 10 mΩ Operating speed: 0-250rpm Contact: Precious metal Temperature: 0℃ to 55℃ Inner diameter: Φ40mm
