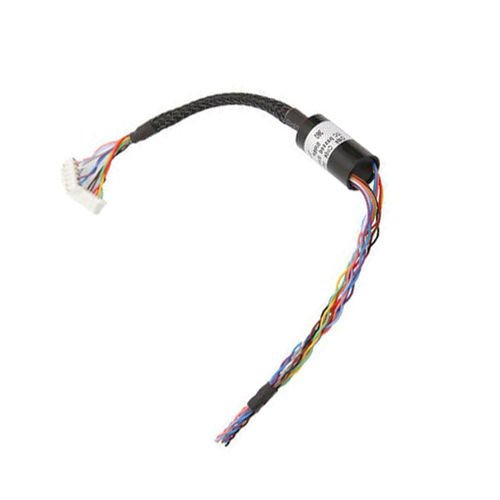

Electric slip ring LPM-12U

capsulefor CCTV applicationscompact

Miniature Slip Ring with High performance and Reasonable Price for Security Monitoring As a key rotating component in security monitoring, the slip ring plays an important role in ensuring the integrity and rapidity of data transmission during 360° rotation. The LPM-12U miniature slip rings have been developed to provide a perfect solution for the transmission of power and signal for devices with limited installation space. The slip ring is of high quality and reliability, certified by ISO9001:2008/ ISO14001:2015 / UL. Features & Advantages Simultaneous transmission of power and common signal is supported Light and compact No interruption or data package loss in a very long-time operation Water tight and vibration resistant High protection level can be customed Long service life Specifications Electrical & Electronics - Circuits： - 12 circuits; 1A each circuit Rating Voltage：110 VAC/DC Dielectric Strength：100VAC@50Hz(S) Insulation Resistance：10MΩ@100VDC (S)" Dynamic Resistance Fluctuation Value：35MΩ Lead Wire Size ：AWG 30# Mechanical - Rotating Speed： - 0~300rpm Contact Material：Gold To Gold Housing Material：Engineering Plastics Wire Length：Stator: 85mm Rotor: 100mm - Environmental - Temperature： - -20°C~+60°C Humidity： - ≤60%RH Protection grade：Customizable Life span：Customizable
