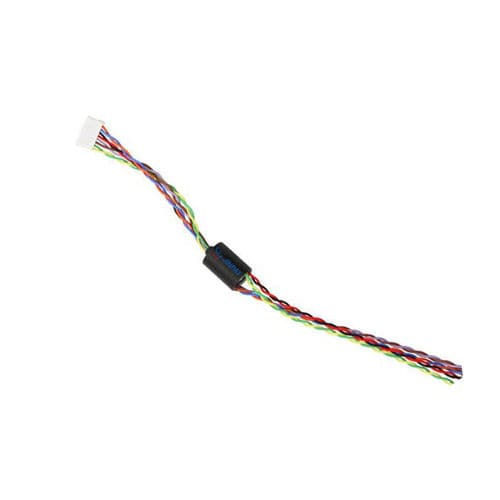

Electric slip ring LPMS-08A

capsulecustomlow-torque

JINPAT Super Miniature Slip Ring for Pipeline Inspection Robot The structure of new LPMS-08A is extremely compact, with a diameter of only 8mm and a total length of 11.2mm. Due to the gold-to-gold contact, the slip ring also has very good electrical performance. Aside from the compact structure and good electrical performance, JINPAT pipeline inspection robot slip ring also can integrate 2 circuits@analog video signals, 2 circuits@other analog signals, 2 circuits@currents (110mA @ 33 V DC) and 2 GND, etc. Furthermore, in order to allow the pipeline inspection robot to accept control commands, integrated control signals are also necessary. Its protection level can reach IP65, which can be used in severe environment. And it can fully meet the demanding requirements of pipeline inspection robot for component installation space. This customized JINPAT pipeline inspection robot slip ring has been well received by customers. Electrical & Electronics - Circuits: - total 8 circuits : 2 circuits*analog video signal/2 circuits*CAN signal/2 circuits*power/2 circuits signal Rating Voltage: - 48 VAC/DC Dielectric Strength: - 500VAC@50Hz(P) 100VAC@50Hz(S) Insulation Resistance:50MΩ@500VDC (P) 10MΩ@100VDC (S)" Dynamic Resistance Fluctuation Value: - 35MΩ Lead Wire Size: - AWG30 # Environmental - Temperature: - -20°C~+60°C Humidity: - ≤60%RH Protection grade - : Customizable Mechanical - Rotating Speed: - 0~300rpm Contact Material: Gold To Gold Housing Material: Engineering Plastics Wire Length: Stator: 280mm /Rotor: 45mm
