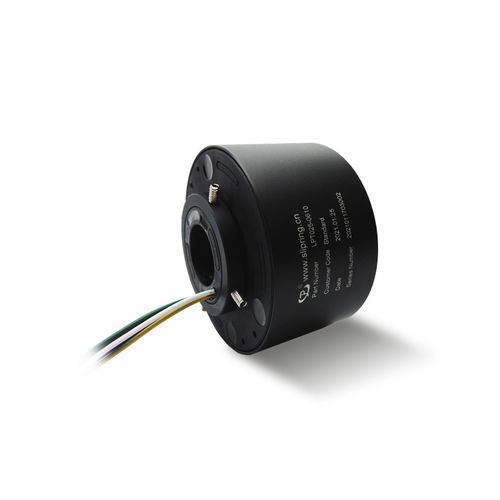

Through-bore slip ring LPT025-0610

for packagingstainless steelhigh-performance

JINPAT Slip Ring with High performance in Packaging Machinery The high-performance slip ring of automatic packaging machinery developed by JINPAT adopts multi-strand combination of imported fiber brush wires to ensure reliable contact under low brush pressure, long service life, 24 hours of continuous rotation, maintenance-free, no lubrication, 360 degree connection rotation transmission power and data signals (including analog, digital, serial port, thermocouple signals, etc.). JINPAT packaging machinery slip ring has a unique design scheme for the thermocouple signal transmission of placement machine and packaging machine, and has been verified by many customers at home and abroad to ensure accurate temperature measurement, high temperature resistance and high reliability. The contact material is imported from abroad, and the surface treatment is based on military-grade coating technology, which can be customized according to customer needs. Specifications - Circuits - Total : 6 circuits ; 6*10A Rating Voltage - 240VAC/DC - Dielectric Strength - 1000VAC@50Hz - Insulation Resistance - "≥500MΩ@500VDC (P) " - Wire Length - "Stator: 300mm Rotor: 300mm" Rotating Speed - 0~300rpm - Contact Material - Gold To Gold Housing Material Aluminum Alloy Temperature - -20°C~+60°C Life span - Customizable Humidity - ≤60%RH Protection grade - IP40
