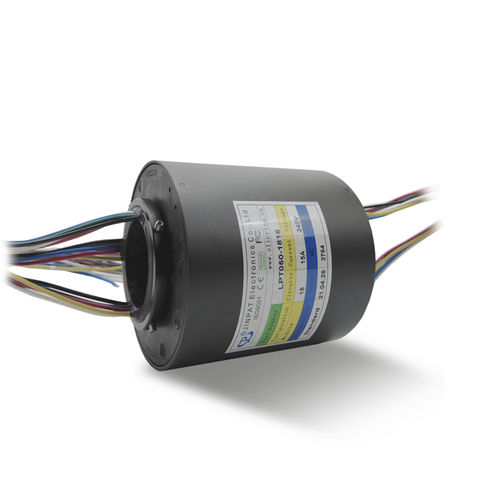

Through-hole slip ring LPT050 -0610/1815

for medical equipmentfor wind turbinefiber brush

LPT series are through-bore slip rings (the center hole can pass through the drive shaft, gas-liquid passage; it can also integrate high frequency, fiber, encoder, waveguide, gas and liquid and other joints). The use of advanced fiber brush ensures reliable contact under extremely low friction. The center hole is available from 0 to 1000mm. The current is from mA to 5000 amps. The voltage can be up to 10000 volts, which can fully meet different needs of transmission. Number of Circuits 06/12/18/24 Rotating Speed 0-300rpm Temperature Industrial: -20℃~+60℃ Military: -50℃~+80℃ Current 5A(Signal)/10A/15A Contact Material Engineering plastic Humidity 60%RH or higher Voltage 240VAC/DC Housing Material Aluminum Protection Grade IP50 Dielectric Strength 1000VAC@50Hz Torque≤0.1N.m/6 circuits, +0.03N.m/6 circuits Insulation Resistance ≥500MΩ@500VDC Wire Type Teflon or others Life Span 10 million (customizable) Dynamic Contact Resistance 1mΩ min. Wire Length rotor/stator:300mm
