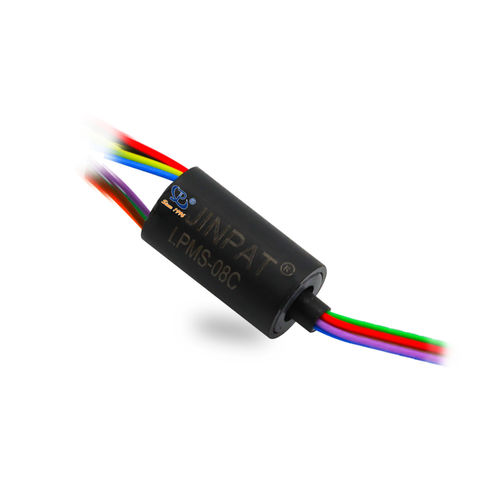

Capsule electrical slip ring LPMS-08C

for camerascompactconductive

The LPMS-08C super miniature slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary part to a rotating part. The LPMS-08C unit is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections. Specification Circuits - 8 Current Rating - 1A Voltage - 48 VAC/DC Electrical Noise - ≤15mΩ Working Speed - 0~300 RPM Contact - Precious metal Wire Size - φ0.5 30# silver plated Teflon UL Lead Wire Length - Rotor:250±5mm; Stator:250±5mm Working Temperature - -20~+60℃ Protection Grade - IP54
