2-part slip ring LPS-10
for roboticsfor medical equipmentfor cameras

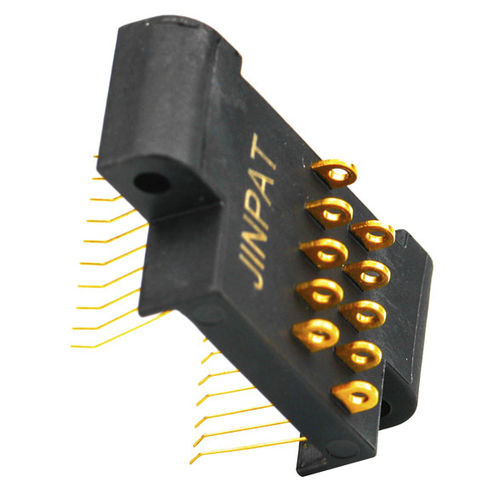

2-part slip ring - LPS-10 - JINPAT Electronics Co., Ltd. - for robotics / for medical equipment / for cameras
2-part slip ring - LPS-10 - JINPAT Electronics Co., Ltd. - for robotics / for medical equipment / for cameras
2-part slip ring - LPS-10 - JINPAT Electronics Co., Ltd. - for robotics / for medical equipment / for cameras - image - 2
Add to favorites
Compare this product


Characteristics

Construction
2-part
Applications
for robotics, for medical equipment, for cameras, for CCTV applications, for measurement instruments, for UAVs, for the lighting industry, for sensors
Material
plastic
Other characteristics
with gold contacts
Voltage

240 V

Primary current

2 A

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 100 rpm
(628 rad.min-1)

Number of channels

10 unit

Description

This unit can be used in any electromechanical System that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanically capability, simplify System design, eliminate possible damage while rotation. It's the key apparatus of various précision rotary worktable, electric test instrument, manufacture and process control instrument. The LPS-10 separate slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections. Using a 90° V-groove ring design for each ring, the LPS-10 provides smoother running, lower torque and lower electrical noise than compétitive slip rings. Features ♦ 10 circuits models ♦ Speed up to 100 rpm continuous ♦ Gold-Gold contacts ♦ 250mm standard lead length ♦ Compatible with data bus protocols ♦ Sealed units are available ♦ Flexible, color-coded, silver-plated, Lead wires ♦ Précision bail bearings meet or exceed life requirements for most commercial applications Advantages ♦ Low torque minimizes System torque budget ♦ Compact design to fit in the most demanding space. ♦ Smooth running ♦ Low electrical noise ♦ Quick shipment per your urgent requirement ♦ 360°continuous rotation ♦ High bandwidth transfer capability Main Applications ♦ Electrical test equipment ♦ Manufacturing and process control equipment ♦ Indexing tables ♦ CCTV pan / tilt caméra mounts ♦ Robotics, rotary sensors, urgent illumination equipment
