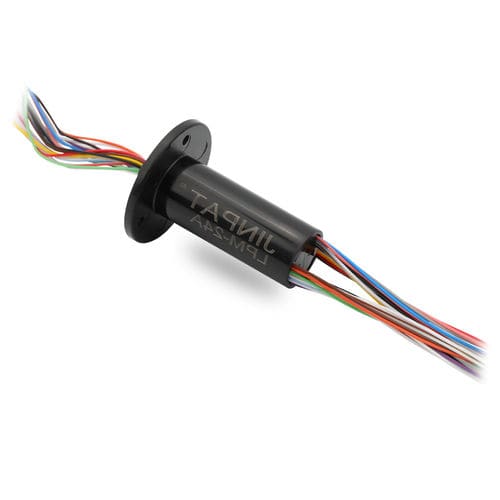

Capsule slip ring LPM-24A

for rotary tablesfor medical equipmentplastic

Description A slip ring can be used in any electromechanical System that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. The can improve electromechanical capability, simplify System design, eliminate possible damage while rotation. The LPM-24A miniature slip ring is a standard, off-the shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections. The LPM-24A allows tremendous flexibility in dealing with System size restrictions. It is available in 4, 6,12,18, 20 and 24 circuit configurations. Features ♦ - 24 circuits models ♦ - 1 amps per circuit,240VAC/DC ♦ - Précision assembly to provicie exceptional rotational life ♦ - Speed up to 300 rpm continuous ♦ - Gold-Gold contacts ♦ - Flexible, color-coded, silver-plated, Teflon® UL lead wires ♦ - Superior handling of low level control signais ♦ - Métal housing optional Advantage ♦ - Low torque minimizes System torque budget ♦ - Compact design to fit in the most demanding space. ♦ - Smootb running ♦ - Low electrical noise ♦ - Quick shipment per your urgent requirement ♦ - 360°continuous rotation ♦ - Addition of spécial components
