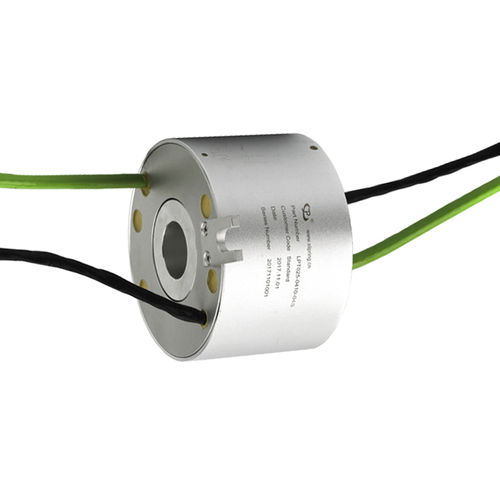

CAN bus slip ring LPT025-0405-04S

through-holefor medical equipmentaluminum alloy

The LPT025-0405-04S slip ring can be used in any electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. The slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. Specification Circuits - 4ckt*5A, 4ckt*Canbus Signal Voltage - 380VAC Dielectric Strength - between circuits:≥1000V@50Hz (current);≥300V@50Hz (signal) Insulation - 500MΩ@500VDC(current);100MΩ@300VDC(signal) Electrical Noise - ≤70mΩ Hole Diameter - 25.4 mm Working Speed - 0~300 RPM Contact - Precious metal Housing Material Aluminum alloy Wire Size - AWG22# Tin Plated Teflon UL ,(0.5mm²) four-core Canbus wire Wire Length - 300mm (rotor), 300mm (stator) Working Temperature - -20~+60℃ Humidity - ≤60%RH Protection Grade - IP54
