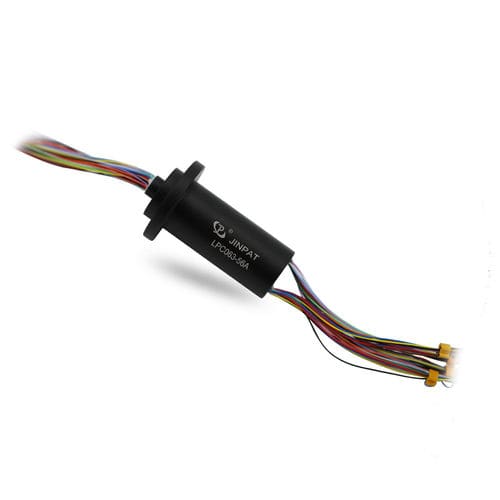

Capsule slip ring LPC063-56A

for rotary tablesfor roboticsfor medical equipment

JINPAT LPC063-56A compact size slip ring shares the same number of channels with LPC-56A. The differences between the two model are basically their sizes and some properties. LPC063-56A capsule slip ring is shorter than LPC-56A, the former is only 63mm. Since it has a relatively smaller size at large, the rated voltage of LPC063-56A is 110V while the LPC-56, 220V. Meanwhile the rated current is lowered with a smaller insulation strength, which is 1.5A for each channel. If you are looking for capsule slip ring with powerful transmission capacity, JINPAT is the right company you should turn to. Contact us for more slip ring models catalogue. Circuits - 56 CKT - Rotating Speed - 0-300rpm or higher - Temperature - Industrial: -20℃~+60℃ - Military: -50℃~+80℃ Voltage - 240V VC/DC - Contact Material - Precious Metal - Humidity - 60%RH or higher Housing Material Aluminum Alloy - Dielectric Strength ≥500VAC@50Hz(P)≥100VAC@50Hz(S) - Torque - ≤0.88 g.m(for reference) Insulation Resistance - ≥100MΩ@500VDC(P)≥10MΩ@100VDC(S) - Wire Type - AWG30#Teflon or others - Life Span - Customizable Dynamic Resistance Fluctuation Value - ≤35mΩ - Wire Length - 250mm(optional)
