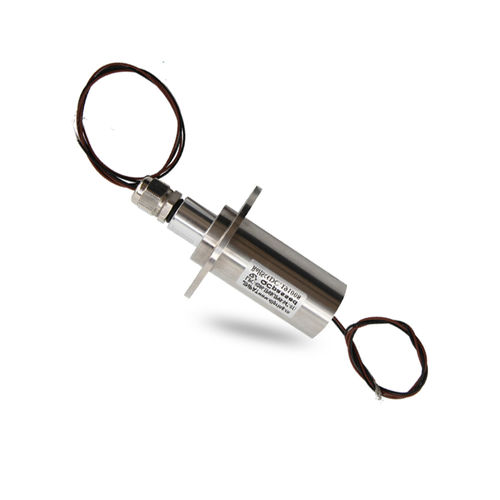

Capsule slip ring LPC-0206-IP68

for camerasmedicalfor test benches

JINPAT LPC-0206-IP68 is a slip ring model with compact structure design. It is a slip ring model of JINPAT capsule slip ring series. Aluminum alloy is adopted as the housing material of LPC-0206-IP68. Besides, this capsule slip ring also adopt gold to gold contact and a refined inner structure which greatly improve the electronic properties of the slip ring model as a whole. With IP68 protection grade, LPC-0206-IP68 is adapt to high humidity working environment. LPC-0206-IP68 is able to withstand high and low temperature. Feature as such makes the capsule slip ring rather flexible to work under various kinds of demanding conditions. Insulation resistance is ≥100mΩ@500VDC，it can work at 240V AC/DC circuit. This slip ring model also features low torque and low friction. Given all these features, JINPAT LPC-0206-IP68 slip ring can provide a powerful and stable signal and power transmission. Electrical & Electronics - Mechanical Number of Circuits - 2CKT - Rotating Speed - 0-100rpm 2Circuits*6A Rating Voitage - 240V AC/DC - Contact Material - Gold-to-gold Insulation Resistance - ≥100MΩ@500VDC - Housing Material - Aluminum Alloy Dielectric Strength - ≥500VAC@50Hz - Lead Wire Length - Stator:250±5mm Rotor:250±5mm Environment - Remarks Working TEmperature - -20℃~+60℃ - Application - / Working Humidity - ≤60％RH - Other - / IP - 68 - Note:"P"stands for power,"S"stands for signal.
