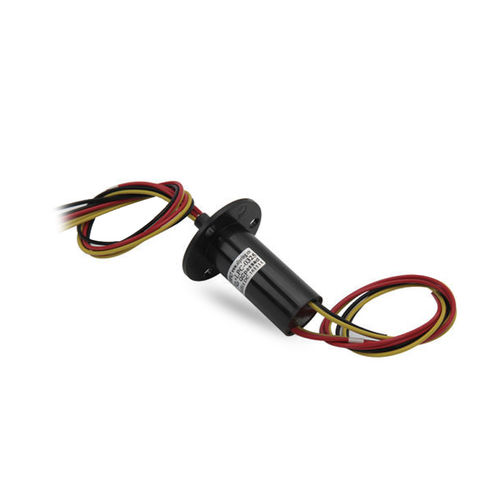

Capsule slip ring LPC-0325-03S

for medical equipmentfor roboticsfor radar antennas

JINPAT LPC-0325-03S is a special capsule slip ring model with built-in thermostat. This is a slip ring model with three 25A channels, which is relatively high compared with other slip ring of the capsule slip ring series. A larger power capacity usually means it might generate more heat during operation. To ensure a stable and smooth rotation and power transmission, LPC-0325-03S is integrated with a build-in thermostat, so there are 3 LM35 circuits. With the thermostat, this capsule slip ring is able to endure low and high temperature that ranges from -20 to 80 degree centigrade. With built-in thermostat, the slip ring can adjust itself to the fittest temperature and therefore guarantee the stable electrical performances. LPC-0325-03S slip ring is a perfect model for small application with rotary power transmission demands. With IP40 protection grading, this slip ring is a competitive model in demanding environment. Electrical & Electronics - Number of Circuits - 7CKT 3Circuits*25A /3Circuits*LM35 - Rotating Speed - 0-300rpm Rating Voitage - 240V AC/DC - Contact Material - Gold-to-gold Insulation Resistance - ≥500MΩ@50Hz(P)≥100VAC@50Hz(S) - Housing Material - Engineering Plastics Dielectric Strength - ≥100VAC@200VDC(P) ≥10MΩ@100VDC(S) - Lead Wire Length - Stator:250±5mm Rotor:250±5mm Working Temperature - -20℃~+60℃ - Working Humidity - ≤60％RH - IP - 40 - Note:"P"stands for power,"S"stands for signal.
