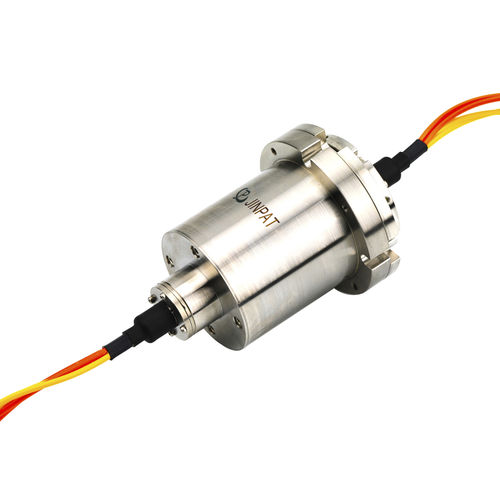

Rotary table fiber optic rotary joint LPFO-07B

for roboticsfor CCTV applicationsfor cameras

Type - Fiber optic slip ring Number of channel - 7 Working wavelength - 850-1550nm Maximum working speed - 100 rpm Working life - Over 100 million rpm Description This series of slip ring product uses fiber for the data transmitting of rotary connections systems. It is suitable for application which needs transmitting large data or signals from static device to rotary position when continuous or intermittent rotating. Feature Durable in harsh environments No contact, no friction, long life up to over 100 million rpm Use fiber optic to transmit signal with no leakage and no electromagnetic interference Multiplexing technology combination can transmit a variety of signals such as video, serial data, and network data Can transmit tens of thousands of kilometers of long-distance transmission network applications Pressure compensation with good sealing performance and can use in 7000m under-water, outer space, and another serious environment Advantage Channels are optional and the biggest channel number can be up to 19 circuits Combined with liquid rotation to rotate interface transmission liquid and gas No leaks Small volume and lightweight Typical Application Robots Material conveying system Rotating turret on vehicle Remote control system Radar antenna Fiber sensor and another rotating platform Medical system Video monitoring system National or international security system Subsea operation system
