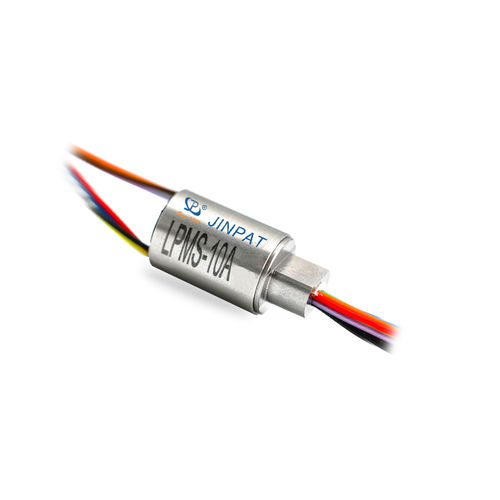

Electric slip ring LPMS-10A

capsulefor medical equipmentfor robotics

Description This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It's the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument. The LPMS-10A super miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections. The LPMS-10A allows tremendous flexibility in dealing with system size restrictions. It is available in 1-10 circuit configurations. Features ♦ - 10 circuits models ♦ - 1 amp per circuit, 48VAC/DC ♦ - Precision assembly to provide exceptional rotational life ♦ - Speed up to 300 rpm continuous ♦ Gold to Gold contacts ♦ - Flexible, color-coded, silver-plated lead wires ♦ - Superior handling of low level control signais ♦ - Métal housing optional Advantage ♦ - Low torque minimizes System torque budget ♦ - Compact design to fit in the most demanding space. ♦ - Smooth running ♦ - Low electrical noise ♦ - Quick shipment per your urgent requirement ♦ - 360°continuous rotation ♦ - Addition of spécial components ♦ Compact package
