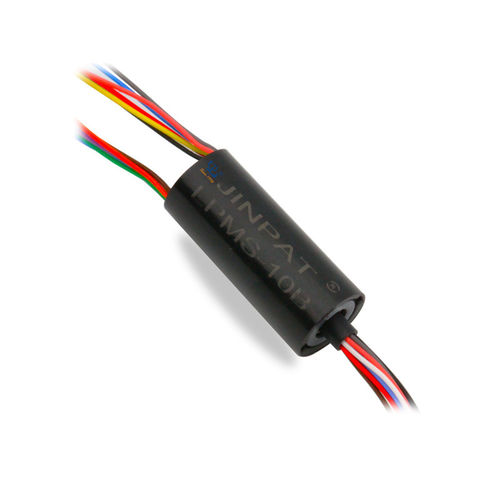

Electric slip ring LPMS-10B

capsulefor medical equipmentfor robotics

Description This unit can be used in any electromechanical System that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It is also called a rotary electrical interface, commentator, collector, swivel or an electrical rotary joint. It can improve electromechanical capability, simplify System design, eliminate possible damage while rotation. It's the key apparatus of various précision rotary worktable, electric test instrument, manufacture and process control instrument. The LPMS-10B super miniature slip ring is a standard, Color- coded lead wires are used on both the stator and rotor for simplifying electrical connections. The LPMS-10B allows tremendous flexibility in dealing with System size restrictions. It is available in 4 and 6 circuit configurations. Features ♦ - 10 circuits models ♦ - 1 amp per circuit, 48VAC/DC ♦ - Précision assembly to provide exceptional rotational life ♦ - Speed up to 300 rpm continuous ♦ - Precious metals contacts ♦ - Flexible, color-coded, silver-plated lead wires ♦ - Superior handling of low level control signais ♦ Engineering plastics housing
