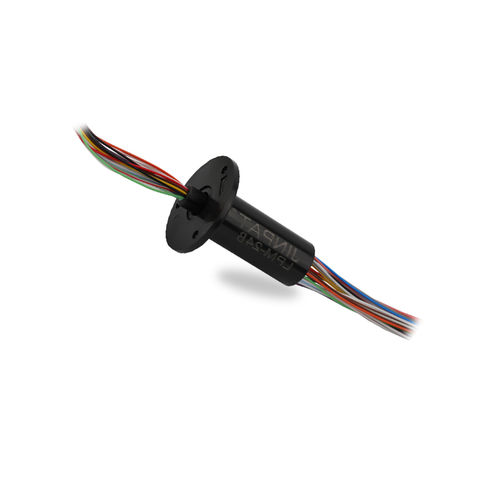

Capsule slip ring LPM-24B

for medical equipmentfor roboticsfor radar antennas

JINPAT LPM series enjoys very high precision. Diameter of LPM series i 12.5mm. The LPM-24B miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections. Specifications Operating Speed 0-200 rpm Number of Circuits 24 Voltage 240 VAC/DC Current Rating 2 amps per circuit Temperature Range -20 to +60 Contact Material Gold to Gold Lead Size 30# silver plated copper Lead Length Standard 250 mm (9.843inch) Dielectric Strength ≥200 VAC @50Hz, between each circuit Insulation Resista 50 MΩ @ 500 VDC Electrical Noise 30mΩMin
