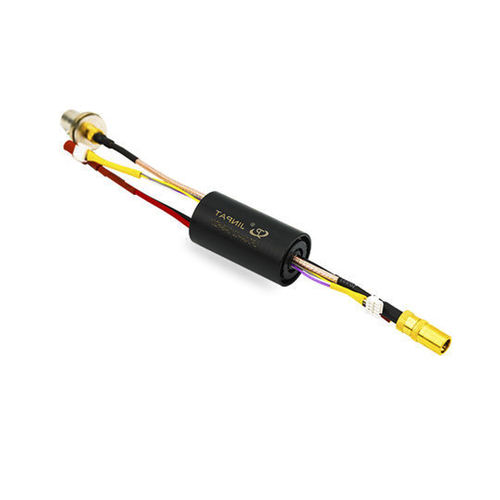

USB slip ring LPC-24A-0210-4S-HD01

capsulefor CCTV applicationsfor cameras

The capsule slip ring is developed especially for equipment where transmission of HD video/audio is required. It is perfectly suitable for 4K TV and Camera adapter. Slip rings for three-axis pan-tilt beater manufactured by JINPAT ensure clearer images by stabilizing the camera in shake and wobble. BNC connector can isolate from video input signal, minimizing the interruption between signals. The bandwidth is larger than the common D-SUB, thus achieving an optimal effect of signal response. More importantly, 360°continuous rotation can allow multi-angle photographing and unlimited follow shot. Features and Avantages HF video signal is transmitted by way of coaxial wires with a high bandwidth No lubrication, maintenance free with advanced fiber brush technology It is able to load standard modular and transmit power and signal Gold-gold contact ensures reliable signal transmission Quick and convenient connection with plug-in connector Long service life Electrical & Electronics - Mechanical Circuits - 2 circuits*HDMI (4K@30Hz) - Rotating Speed - 0~300rpm Rating Voltage - 48VAC/DC - Contact Material - Gold To Gold Dielectric Strength - 100VAC@50Hz(S) - Housing Material - Engineering Plastics Insulation Resistance - 10MΩ@100VDC (S) - Wire Length - Stator: 151mm Rotor: 174mm Dynamic Resistance Fluctuation Value - 35MΩ Lead Wire Size - HDMI - / Environmental - Others Temperature - -20°C~+60°C - Life span - Customizable Humidity - ≤60%RH - Note: "P" stands for power, "S" stands for signal Protection grade - IP40
