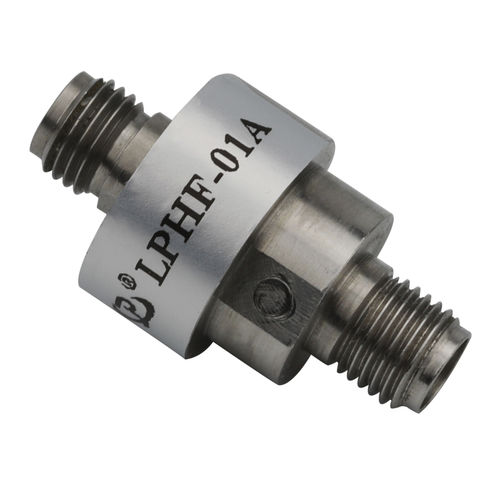

Signal transmission electrical rotary joint LPHF-01A

for radar antennasvideo transmissionstandard

RF Rotary Slip Ring Features & Advantages Excellent in shielded effects and anti-interference capacity Integrated unit of high frequency and electric Modular design and physical integration make it compact in structure Ultra-low insertion loss, VSWR and phase-WOW Optional connector type Long service life Cost-effective No maintenance RF Rotary Slip Ring Custom solution : Available for separate transmission of single or multi-channel high frequency signals or integrated transmission of electrical signal (200 circuits at most) and high frequency Simultaneous transmission of multiple signals or channels (4 at most) is supported Specification Channel - 1 Frequency Range - DC to 18GHz SVWR, max - 1.20@ 0 to 6GHz; 1.25@ 6 to 12GHz; 1.35@ 12 to 18 GHz SVWR Variation - 0.03 Insertion Loss - 0.25 dB@ 0 to 6GHz; 0.35dB@6 to 12GHz; 0.50dB @12 to 18GHz Insertion Loss Variation - 0.04dB Phase, max - 1° Peak power, max - 1500W Average power, max - 200W@1 GHz; 30W@18GHz Working Speed, max - 100 RPM Connector Type - SMA Female (50Ω) Contact Material - Beryllium copper Connector Material - Stainless steel Axial Load of End Surface, max - ±2N Radial Load of End Surface, max - ±2N Starting Torque - 0.5Ncm, max Working Torque - 1Ncm, max Weight - 10g Working Temperature - -40~+70℃ Humidity - 85% Protection Grade - IP40 Life - 0.5 million revolutions
