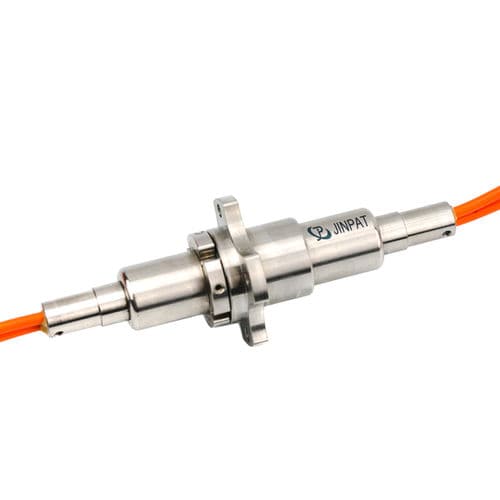

Fiber optic slip ring LPFO-02Bcapsulefor radar antennasfor military applications
Add to favorites
Compare this product
Characteristics
- Type
- fiber optic
- Construction
- capsule
- Applications
- for radar antennas, for military applications, for HD video surveillance
- Material
- stainless steel
- Other characteristics
- low-torque, high-performance
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 100 rpm
(628 rad.min-1)- Number of channels
2 unit
Description
Part Number: LPFO-02B
2 channels
Wavelength Range: 850-1550 mm
Insertion Loss:＜4/6 dB
Insertion Loss Fluctuation: ＜1 dB
Return Loss: ＞45 dB
Crosstalk: ＞50 dB
Working Speed (max): 200 rpm;
Fiber Type: SM/MM;
Connector Type: ST/FC/SC/LC;
Working Temperature:-20℃~+65℃;
Long Service Life:100 million turns
