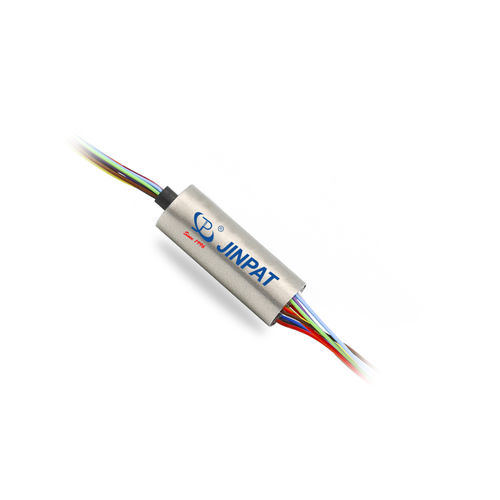

Capsule slip ring LPM-24UM

for medical equipmentindustrialmedical

Description The LPM-24UM miniature slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary part to a rotating part. The LPM-24UM unit is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections. Specification Circuits - 24 Current Rating - 1A Voltage - 240VAC Electrical Noise - ≤15mΩ Working Speed - 0~300 RPM Contact - Precious metal Wire Size - 30# silver plated copper UL, Teflon Lead Wire Length Rotor:250mm; Stator:250mm Working Temperature - -20~+60℃ Humidity - ≤60%RH Protection Grade IP54
