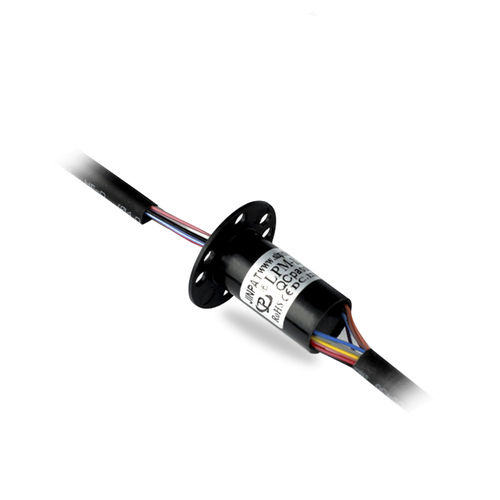

Capsule slip ring LPM-12C-2
for CT scanmetalflange

capsule slip ring
capsule slip ring
capsule slip ring
Add to favorites
Compare this product


Characteristics

Construction
capsule
Applications
for CT scan
Material
metal
Other characteristics
flange
Voltage

240 V

Primary current

2 A

Rotational speed

Max.: 200 rpm
(1,257 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Number of channels

12 unit

Description

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints. A rotary joint, also referred to as a rotary union or rotating union, permits the flow of various media from a stationary supply pipe and into and/or out of rotating equipment. Heat transfer and hydraulic media typically used with rotary joints and rotating unions include steam, water, thermal oil, hydraulic oil, air, and coolant. Specifications Operating Speed 0-200 rpm Number of Circuits 12 Voltage 240 VAC/DC Current Rating 2 amps per circuit Temperature Range -20℃ to +60℃ Contact Material Gold to Gold Lead Size 30# silver plated copper Lead Length Standard 250 mm (9.843inch) Dielectric Strength ≥200 VAC @50Hz, between each circuit Insulation Resistance 50 MΩ @ 500 VDC Electrical Noise 30 mΩMin Housing Material Metal
