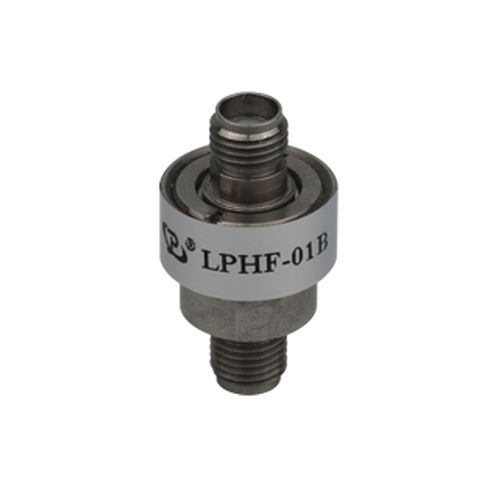

Radar antenna slip ring LPHF-01B

for military applicationsfor measurement instrumentsfor HD video surveillance

Place of Origin: Guangdong, China Brand Name: JINPAT Model Number: LPHF-01B Type: Accessories Channel Number: 1 Frequency Range: DC to 18GHz Peak Power, max: 1500W Working Speed: 100 rpm Working Temperature: -40~+70℃ Style: High Frequency/Radio Frequency rotary joint RF rotary joint is used in devices that rotate continuously, and transmit high frequency and high speed rate signal from stationary part to rotating part. This kind of slip ring is compact in structure and easy to integrate into other devices. It is reliable in performance and excellent in shielded effect. Meanwhile, RF coaxial connector also enjoys a good function of processing signal besides the performance that mentioned above. For example, Filtering, phase-modulation, frequency mixing, attenuation, detection and so forth. Furthermore, the low VSWR and wastage could better satisfy the needs of weapon system and precise measurement instrument. RF Rotary Slip Ring Features Excellent in shielded effects and anti-interference capacity Modular design and physical integration make it compact in structure Ultra-low insertion loss, VSWR and phase-WOW Optional connector type RF Rotary Slip Ring Advantages Long service life Cost-effective No maintenance Custom solution for hybrid rotary joint
