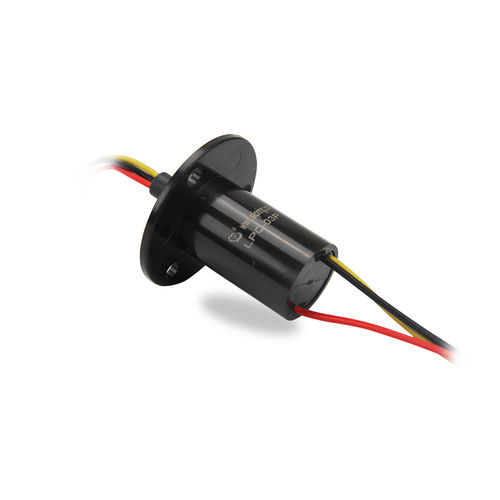

Ethernet slip ring LPC-03P

USBfiber opticgigabit Ethernet

Number of Circuits 3 Current 10A Optional It can provide high speed, long life, high protection slip ring customization, and integrate a variety of signals, such as Ethernet, USB, RS, LVDS, CANbus, FireWire, SDI, HDMI, etc. Description This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. The LPC-03P06S slip ring provides 3 circuits at 5 amps and 6 circuits for signal (2 amps per circuit).The LPC-03P provides 3 circuits at 10 amps. This compact power and signal handling design provides unique capability for many challenging applications. The LPC-03P serials provide smoother running, higher design precision, lower torque, lower contact resistance, and lower electrical noise than competitive slip rings. Features ◆ 3 circuits or more models ◆ 5 amps /2 amps and 10 amps /2 amps circuits combinations ◆ Speed up to 300 rpm continuous ◆ Gold-gold contacts ◆ Color-coded, silver-plated insulated lead wires ◆ Longer lead wire available ◆ Compatible with data bus protocols ◆ Transfers analog and digital signals ◆ Sealed units are available Advantages ◆ Low torque minimizes system torque budget ◆ Compact design to fit in the most demanding space. ◆ Smooth running ◆ Low electrical noise ◆ Quick shipment per your urgent requirement ◆ 360°continuous rotation ◆ High bandwidth transfer capability ◆ Addition of special components
