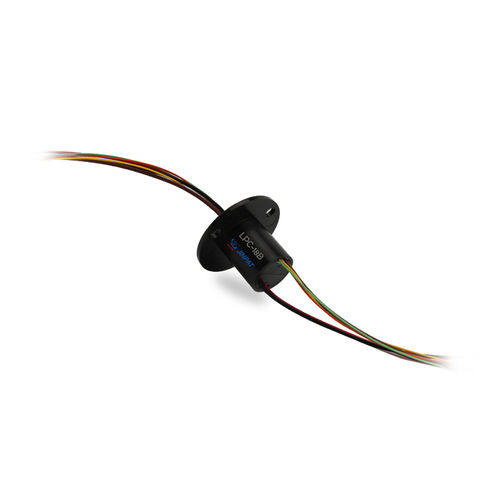

Electric slip ring LPC-18B

capsulefor medical equipmentfor rotary tables

Standard middle-sized Capsule Slip Ring is able to integrate over 125 circuits, with optional outer diameter from 22mm~54mm. This series adopts advanced military-standard surface processing techniques, and is highly precise, compact and easy to assemble. Gold-to-gold contact ensures low resistance and super long service life. It is able to integrate various signals: Ethernet, USB, RS, LVDS, CAN bus, Fire Wire, SDI and HDMI, etc. Specifications Operating Speed 0-200 rpm Number of Circuits 18 Voltage 240 VAC/DC Current Rating 2 amps per circuit Temperature Range -20℃ to +60℃ Contact Material Gold to Gold Lead Size 28# silver plated copper Lead Length Standard 250 mm (9.843inch) Dielectric Strength ≥200 VAC @50Hz, between each circuit Insulation Resistance 50 MΩ @ 500 VDC Electrical Noise 30mΩ Min
