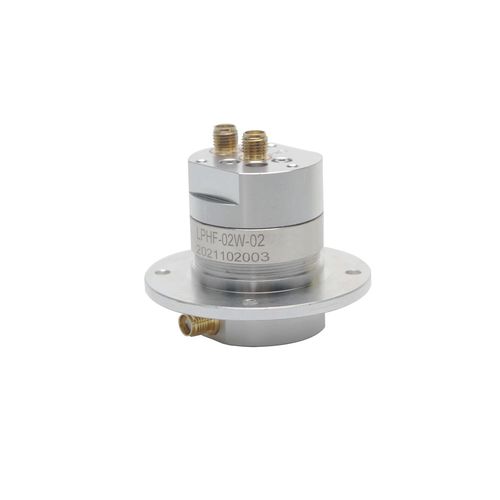

Capsule slip ring LPHF-02W-2

for radar antennasfor marine applicationsfor military applications

High frequency rotary joints include coaxial rotary joints, waveguide rotary joints, coaxial waveguide rotary joints. They can also be called high frequency slip rings or radio frequency slip rings. These slip rings are especially designed for high frequency signals/ radio frequency signals. LPHF-02W-2The speed of this product can reach 200rpm, life >5 million, CH1:DC-18GHz,vswr<1.5,CH2:DC-10GHz,vswr<2.4, the two channels have higher frequency, the performance has advantage over the peers, and this model can meet the customer's stator end radial outlet way to reduce the axial space limitation. Specifications Channel CH1 CH2 Starting Torque 0.05Nm@ room temperature Interface Tpe SMA-F(50ohm) SMA-F(50ohm) Continuous Rotational Torque 0.05Nm@ room temperature Rotating Speed,Max. 250rpm Frequency Range DC-18GHz and DC-10GHz Life Span ≥ 5 million Revolutions Peak Power, Max. 1000W Housing Material Aluminum Average Power Max 60W@4.5GHz & 10W@4.5GHz Insertion Loss, Max 0.5dB /0.54dB Operation Temperature -45~+70*C
