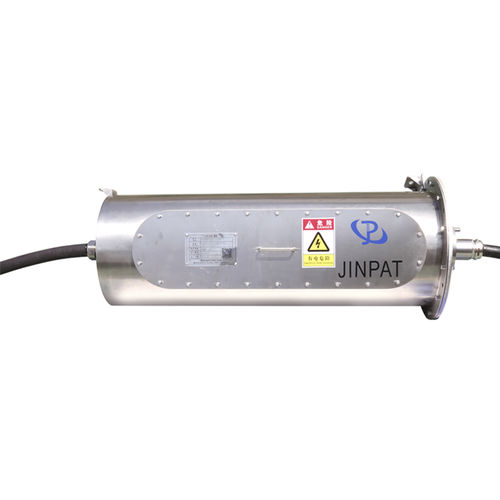

Slip ring for marine applications LPA000-034000-01PE-0606-0203-72S-11L-01A

metalcompact

* Major Function: high current power rings, low current power rings, signal rings and gas-liquid channels in one integrated solution. * Best shielding design based on multi channels to cope with interference between weak electrical signals including temperature sensor signal and position sensor signal. * Gas-liquid pressure: 1MPa. * Against complicated marine corrosive environment. * Unique triangle base design to specifically applicable for operation in swaying and tilting movement condition like vessels or ships. Damp-Heat Test passed and applicable for IEC60068-2-30 standard, vibration test passed and applicable for IEC60068-2-6 standard. 3MW high power integrated slip ring for ship podded propeller is a model with high power capacity and compact structure. Independent modular design, interference-free transmission of gas, fluid, signals and power. This slip ring product passes technical standards published by CSS and other international authorities like Bureau Veritus.
