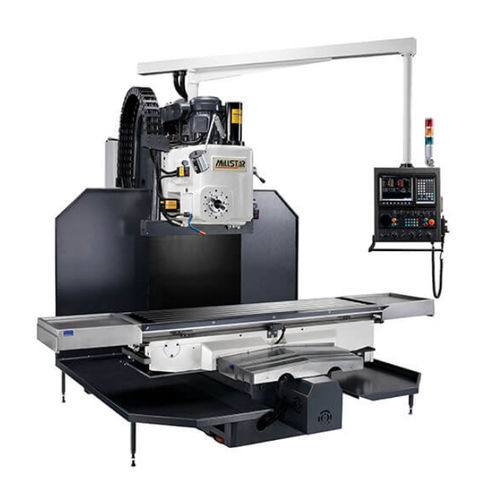

3-axis CNC milling machine VH480

horizontalcolumn typeNT50

The bed, column, saddle and table are manufactured from high quality Meehanite cast iron, stress relieved for high stability. All slideways are hardened, precision ground, then coated with Turcite-B for maximum wear resistance. The X, Y axes are protected by stainless steel telescopic covers. The X, Y axis drive employs high precision lead screws, combined with double nuts, ensuring high accuracy of feed. The spindle runs on precise angular contact bearings. The spindle is precision manufactured from SCM21 alloy steel, heat treated and precision ground. All gears in milling head are hardened and precision ground for quiet running. The X-axis feed is driven by a high torque servo motor, providing variable feed speed. The powerful spindle motor gives a high chip removal rate. Choice of Fanuc or Mitsubishi CNC controller. All models can be converted into CNC controlled system. Automatic lubricating system Cooling system Tool box Spindle draw bar screw Leveling pads Leveling screws Air operated Y,Z axis lock(480,550,650,780) Transformer(Export only) all screw(X,Y) Air power draw bar(Vertical and horizontal) 4th axis rotary table(Manual) (1o,5o,15o) Electric magnet(400X800,500X1000) Spindle braking equipment(Vertical and horizontal spindle) Vice(16”,20”) End milling collet chuck set Universal clamping set Coolant tray Chip guard Half cover for work table 3 axes D.R.O(Fagor brand) CE norm
