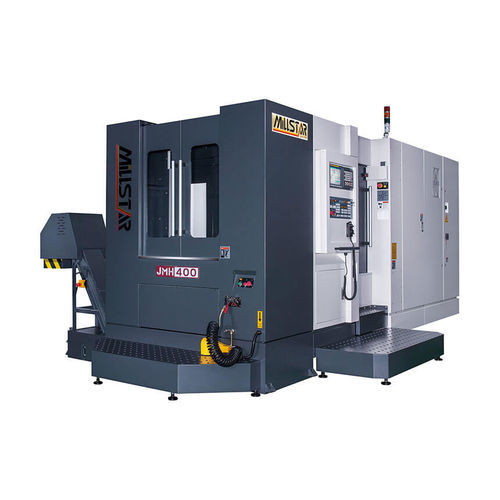

3-axis CNC machining center JMH400

horizontalBT 4040 tools

The major structural parts are ladle and box type integrated construction to fully overcome the cutting "Blind Rigidity" problem. Three axes are mounted with heavy duty roller type linear guide ways, featuring heavy load resistance and rapid traverse. The structural parts are symmetrical construction combined with "V" shape rib reinforcement that ensures they will remain deformation-free even after a long time. The structural parts are manufactured from high quality cast iron, tempered for stress relier. The advanced finite element andlysis software is applied for simulating structural stress. This assures the best possible machine rigidity, stability and dampening capacity. Rotary type automatic pallet changer 1o indexing rotary table(JMH-400 std. 0.001o) Mitsubishi or Fanuc control 40 tools chain type ATC BT-50,JMH-500:6,000 rpm direct drive BT-50,JMH-630/800/1000:6,000 rpm Japan Gear head Rigid roller type linear guide way system Spindle curtain coolant Spindle oil cooler Heat exchanger for electrical cabinet 3 areas powerful chip flushing system Automatic lubrication system Fully enclosed splash guard Chain type chip conveyor with cart Leveling bolts and pads Tool box with tools Operation and maintenance manual Transformer(Export only) and Export packing Optional Accessories: 0.001o or 5o indexing rotary table (JMH-400, 0.001o std.) 60,90,120 tools chain type magazine BT-50, 8,000~12,000 rpm direct drive(JMH-500) BT-50, 8,000 or 10,000 rpm direct drive (JMH-630~JMH-1000) Coolant through spindle(CTS-20/30/50/70 bar)
