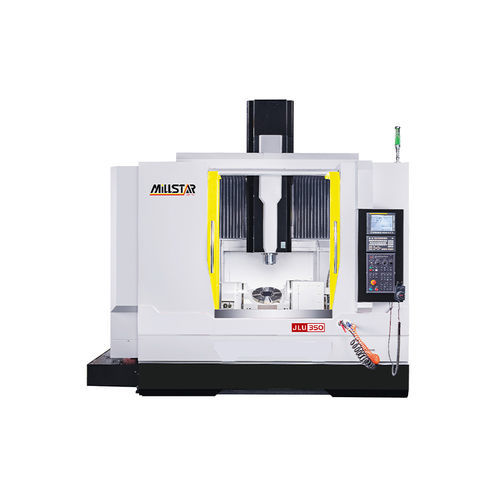

5-axis CNC machining center JLU-350verticalwith rotary tableBT 40
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Structure
- with rotary table
- Spindle mount
- BT 40
- Number of tool stations
- 24 tools
- Applications
- heavy-duty
- Other characteristics
- compact, direct-drive, high-precision
- X travel
1,020 mm
(40.16 in)- Y travel
610 mm
(24.02 in)- Z travel
510 mm
(20.08 in)- Rotational speed
12,000 rpm
(75,398 rad.min-1)- Work feed X-axis
36,000 mm/min
(24 in/s)- Work feed Y-axis
36,000 mm/min
(24 in/s)- Work feed Z-axis
36,000 mm/min
(24 in/s)
Description
Standard Accessories:
Lubrication system
Fully enclosed splashguard
Manual roof splashguard
Spindle / AC axis coolant system
Chip cart
Chip conveyor
Air conditioner for electrical cabinet
LED working lamp
USB
Ethernet
Air gun
Water gun
Spindle ring spray, Spindle outside air spray 2 output
Optional Accessories:
Linear scale
Tool length measurement
Workpiece measurement
Oil mist collector
Auto front door
Auto roof splashguard
CE certified
Coolant through spindle (CTS)
Spindle thermal displacement compensation
Whole structure thermal displacement compensation
Spindle ring spray
Oil skimmer
RS-232 interface
