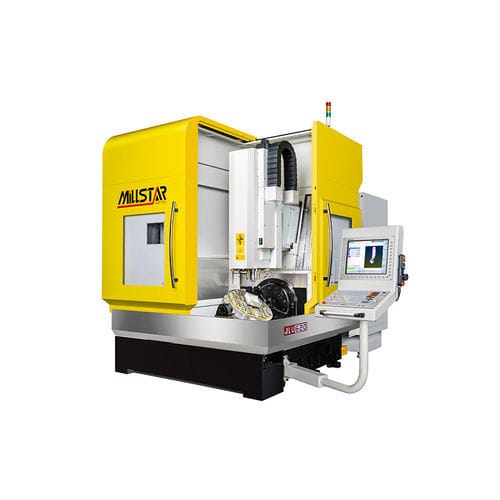

5-axis CNC machining center JLU-620

horizontaltraveling-columnwith rotary table

5-axis horizontal machining center designed for high-speed 5-axis simultaneous machining for complex parts, this 5-axis HMC machine is ideal for various industries, such as mold and die, automotive parts, aerospace parts, 3D complex parts, medical equipment, and high precision parts. X / Y / Z axes are mounted with heavy duty roller type linear guide ways. Optical encoders for B / C axes (optional). Table tilting angle (B axis):-40°~+110° Table rotating angle (C axis): 360° continuous rotation. B / C axes are driven by servomotors. Standard Accessories: Heidenhain controller Heidenhain 3 axes linear scale Roller type linear guide way Spindle oil cooler Full enclosed splash guard Large table size 650 mm Z axis motor with brake system B/C axis optical encoder Chain type chip conveyor & Chip cart Heat exchanger for electrical cabinet Oil skimmer Transformer (Export only) Optional Accessories: SIEMENS / FANUC controller Coolant through spindle (CTS) 20/30/50 bar Programmable cutting coolant nozzle Chip flushing system Tool length measurement system Workpiece measurement system Air supply for clamping fixture CE standard Air conditioner for electrical cabinet HSK-63A, 20,000 rpm spindle (Built-in type) 15,000 rpm direct driven spindle Software for carsh protection
