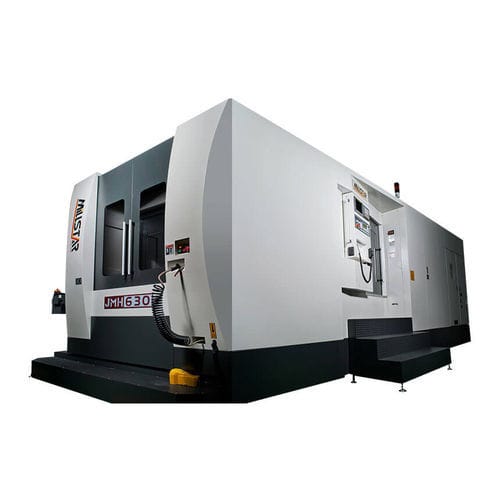

3-axis CNC machining center JMH630

horizontalcolumn typeBT 50

Direct spindle provide better precision and reduce spindle vibration. High rigidity roller type Linear Guideway on 3 axes that providing high precision manufacturing and longer service life. CNC Rotary table change providing work piece loading & unloading when processing. Saving time on the work piece load waiting. CNC Rotary table use serve motor driving, position accuracy exactly. Scissors type of telescopic cover can reduce motor output, noise, increase movement smooth and force average. Extra chip flushing system with 30 spouts providing 3 flushing areas need. Chip flushing system is effective increase 33% up flushing. Standard Accessories: Rotary type automatic pallet changer 1o indexing rotary table(JMH-400 std. 0.001o) Mitsubishi or Fanuc control 40 tools chain type ATC BT-40,JNH-400/JMH-500(40):10,000 rpm direct drive BT-50,JMH-500:6,000 rpm direct drive Rigid roller type linear guide way system Spindle curtain coolant Spindle oil cooler Heat exchanger for electrical cabinet 3 areas powerful chip flushing system Automatic lubrication system Fully enclosed splash guard Chain type chip conveyor with cart Leveling bolts and pads Tool box with tools Operation and maintenance manual Transformer(Export only) and Export packing Optional Accessories: 0.001o or 5o indexing rotary table (JMH-400, 0.001o std.) 60,90,120 tools chain type magazine BT-40, 10,000~24,000 rpm direct drive(JMH-400/JMH-500) BT-50, 8,000~12,000 rpm direct drive(JMH-500)
